IP32 Wall Mount Style SMD LED Display Board Die - Casting Aluminum Cabinet

Brand Name : EFF

Model Number : eff/

Certification : CE/FCC

Place of Origin : CHINA

MOQ : 1 set

Price : according to differnt style

Supply Ability : according to diffeent products

Delivery Time : 15-35 workding days after recieved payment

Packaging Details : plywood export packing

meterial : Alluminum

maintanance type : back

screen : p2.5mm

protection level : IP32

Contact Now

P2.5mm Led Display Wall Mount Style ,Video Wall Led Display

Features:

1. Adopts Die-Casting Aluminum, with additional strengthening bracket inside, anti-tensiling and shockproof, without deformation lasting for 10 years..

2. Features with light weight, thin body, silent working, and speedy heat venting, with graceful appearance..

3. Seamless: High precision CNC machining, precision up to 0.1mm

4. Fast Installation and disassembling: connection lock between cabinets are patented, closely combined, safe, reliable and adjustable, 50 cabinets can be installed in one hour.

5. Real white, brilliant colors, breathtaking grayscale.

P2.5mm HD Video Wall Rental Purpose LED Screen
S/N	Item	Technical Parameters
LED Parameters
1	Item Name	LED Type	Brightness	Wave Length	H/V Visual Angle
2	Red LED	SMD2121	120-140mcd	620-625nm	140º/65º
3	Green LED	SMD2121	360-435mcd	520-525nm	140º/65º
4	Blue LED	SMD2121	80-100mcd	470-475nm	140º/65º
Module Specification
1	Pixel Pitch	2.5mm
2	Pixel Configuration	1R1G1B(3in1)
3	Module Resolution	128 x 64 pixels
4	Module Pixles	8192 pixels
5	Module Size	320mm X 160mm
Cabinet Specification
1	Cabinet Size(W X H X D)	640mm x 640mm x 85mm
2	Cabinet Resolution(dot)	256 x 256 pixels
3	Module Quanity (pcs)	8pcs
4	Cabinet Pixels	65536 pixels
5	Pixel Density	160000 pixels/m2
6	Cabinet Materials	Die Casting Aluminum Cabinet for rental purpose
7	Cabinet Weight	10.5kg per cabinet
Whole Screen Specification
1	Screen Brightness	≥1500cd/m2
2	Driving Method	Constant current
3	Best Viewing Distance	2.5m - 30m
4	Max. Power Consumption	1500W/m2
5	Average Power Consumption	675W/m2
6	Gray Level	8bits input, 4096 levels(212)
7	Display Color	16M
8	Frame Frequency	≥60Hz
9	Refresh Frequency	≥1000Hz
10	Uninterrupted Working Hours	≥72 hours
11	Screen Life-span	≥100,000 hours
12	MTBF	≥5,000 hours
13	Discrete Blind Spot Rate	<1/10000
14	Continuous Blind Spot Rate	None
15	Blind Spot Rate	<1/10000
16	Protective Scale	For indoor use only
17	Screen Plainness	<±1mm
18	Power Supply Mode	AC220±10% 50Hz/AC110±10% 60Hz
19	Environment Temperature & Humidity	Temperature:-20 Celsius~+60 Celsius
		Humidity:10%~90% RH
20	Control Mode	Synchronous display with control PC by DVI
21	Control System	DVI video card + full color control card + fiber system( optional)
22	Display Content	Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
23	Interface	Standard Ethernet
24	Transmission Distance	Multi mode fiber <500m, single mode fiber <30km,internet cable <100m
25	Certification	CE-EMC, CE-LVD, FCC, RoHS

IP32 Wall Mount Style SMD LED Display Board Die - Casting Aluminum Cabinet

Product Tags:

SMD LED Panel

Indoor LED Display Board

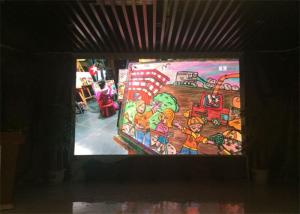

IP32 Wall Mount Style SMD LED Display Board Die - Casting Aluminum Cabinet Images
