Hd p8 Smd led text display / Outdoor Advertising Led Video Wall / Outdoor Led p8
Functions and advantages
1. High resolution 40000pixels/sqm, HD nice video advertising effect.
2. SMD 3-in-1 LED encapsulation confirm the high brightness, high definition, seamless and flatness
3. Good protection level waterproof IP65, anti-corrosion, oxidation resistance, long life span
4. Wide viewing distance, high definition, good uniformity
5. Brightness can be adjusted automatically according to different surroundings.
6. Can be set to open and close the screen automatically
7. Can be mounted on the wall, by pole support on the street, on top of building, etc
8. Support all types of video, graphics, animation, message, etc, support PC online or offline control, also can remote control with asynchronous system, Wifi control, 3G control.
9. Widely used for outdoor commercial advertising, shopping mall advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
Data Sheet:
| | |
| Certificate | CE,FCC,ETL |
| LED Encapsulation | |
| | mm |
| Resolution(W×H) | 28X28 |
| Size(mm) | 250X250 |
| Weight(kg) | - |
| Max. Power consumption | 45 |
| Module per cabinet(W×H) | 2X2 |
| Resolution(W×H) | 56X56 |
| Size(mm) | 500X500X73 |
| Cabinet Area(m2) | 0.25 |
| Weight(kg/cabinet) | 6 |
| Pixel Density(dot/m2) | 12544 |
| IP Grade | Front IP65 Back IP54 |
| Flatness(mm) | <1 |
| Brightness correction | ok |
| Color correction | ok |
| Brightness Before correcting(nit) | - |
| White balance brightness(nit) | 5500±10% |
| Color temperature(K) | 8000-11000(Adjustable) |
| Horizontal viewing Angle( °) | 160 |
| Vertical viewing Angle( °) | 120 |
| Pixel center distance deviation | <3% |
| Brightness uniformity | <97% |
| Color uniformity | No more than±0.003Cx,Cy |
| Contrast Ratio | 2000:1 |
| Power consumption(W/cabinet) | Max:180 |
| Power consumption(W/cabinet) | Average: 60 |
| Working Voltage | AC90~264V(50-60Hz) |
| Driving Method | Constant drive |
| Scan | 1/4 |
| Frame frequency(Hz) | 50&60 |
| Refresh frequency(Hz) | >960 |
| Control system | Nova |
| Life span(h) | 100000 |
| Malfunction dot rate(PPM) | 100 |
| Environment temperature (℃) | Working temperature:-20 — 45 |
| | Storage temperature:-30 — 60 |
| Environment humidity | Working : 10 - 90%(No condensation) |
| | Storage : 10 - 95%(No condensation) |
| Communication mode | Cat 5 |
| Angle of Arc installation | 165°-195° |
| Minimum circle diameter(m) | 3.8 |
Special :
1. New mask design makes LED light almost zero reflection, which ensures the screen displaying effect;
2. The cabinet of unit modules adopts to high-temperature spraying technology, the antirust function is greatly improved;
3. Module surface flatness ± 0.2mm, the entire screen has good flatness;
4.High uniformity display color;
5. For improving the service life, PCB is made by wave soldering process with the green oxygen isolation layer, which prevents the line of moisture and oxidation.
6. Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate;
7. Using fishbone bus line greatly reduces the contact problem;
8. IP65 grade for high performance waterproof and dustproof capability;
9. -25°C – 65°Cworking environment for outdoor display, adapted to the harsh environment..
Installation:
1. We can assist the training and technical support for the customer in the factory, if the customer requires so.
2. We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company.
3. Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
Product Tags:
|
|

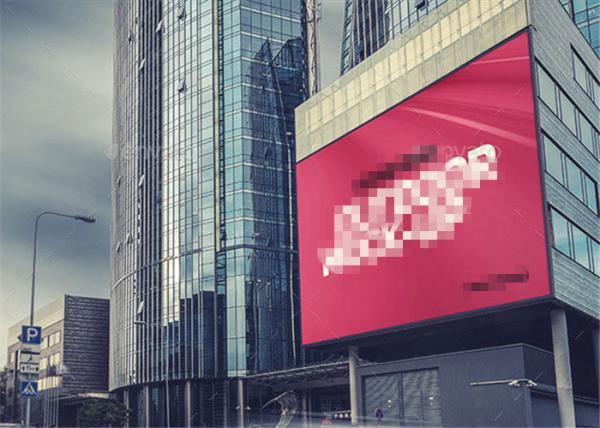

IP65 Waterproof Outdoor LED Video Wall For Commercial Advertising / Stage Rental Images
|
