Super Slim Outdoor LED Video Wall P16mm Die - Casting Aluminum Image Promotion

Fiddle Faddle Electronic Co.,Limited
Contact Now

Super Slim Outdoor LED Video Wall P16mm Die - Casting Aluminum Image Promotion

  • 1
  • 2
  • 3

Brand Name : EFF

Model Number : eff/

Certification : CE/FCC

Place of Origin : CHINA

MOQ : 1 set

Price : according to differnt style

Supply Ability : according to diffeent products

Delivery Time : 15-35 workding days after recieved payment

Packaging Details : plywood export packing

control system : linsn/nowa

light : 16mm

style : DIP

using place : Outdoor

LED Chip : Epistar

WATERPROOF : WITH

Contact Now


Waterproof Display Screen Price Outdoor Advertising outdoor rental led display P16 mm



Dispriptions:


Super high-resolution is one of the most apparent features for the new generation of LED display,


therefore the showing of information is much smoother and clearer than before. Also, it works in the

environment of no air-conditional because of low power consumption. What's more, convenient mounting

and simple disassembling can help customers save much expense in the labor and time. In general,

these changes of the LED display offer user more comfortable and wonderful viewing experience, can be

used in so many fields and occasions , such as hotel advertizing ,stage renting ,television ,shopping malls

,big markets, outdoor stadiums, concerts , fairground ,sightseeing districts, Outdoor advertising media,

enterprise engineering, cultural tourism, image promotion, commercial real estate, etc....


Cabinet discriptions:


1) Super slim,super light,easy to carry,to transport.
Cabinet size:480mm*480mm*50mm(P3,P4,P5)
576mm*576mm*50mm(P6)

Cabinet weight:8kg/10kg
2) Die-casting Aluminum: very stable, no deformation.
3) Flatness: forming mold in one time, accurate to 0.2mm.
4) No noise: with fanless power supply, it's completely quiet.
5) Fast installation: only one man can install 50 cabinets by hand within an hour



Data Sheet:

Product Model P16 Full Color Led Module
Module size 256mm*256mm
Pixel pitch 16mm
Pixel density 3906dots/m2
Pixel configuration 1R1G1B
Module resolution 16dots(W)*16dots
Module maximum power consumption 35W
Module Thickness 33CM
Cabinet size 1024mm*1024mm
Module Weight 1kg
Driving method Constant Current Driving
Scanning method Static Scanning
Interface HU40
Brightness 7500cd/m2
Power supply 5V/40A 5V/60A
Cabinet resolution 64*64dots
Optimal viewing distance 10M~50M
Optimal viewing angle 160°(W) 120°(H)
Average power consumption 350W/H
Maximum power consumption 800W/m2
Driving device Constant Current Driving
Refresh rate 600HZ
Grey scale RGB Each 256, can display 16.7M colors)
MTBF 9000hours

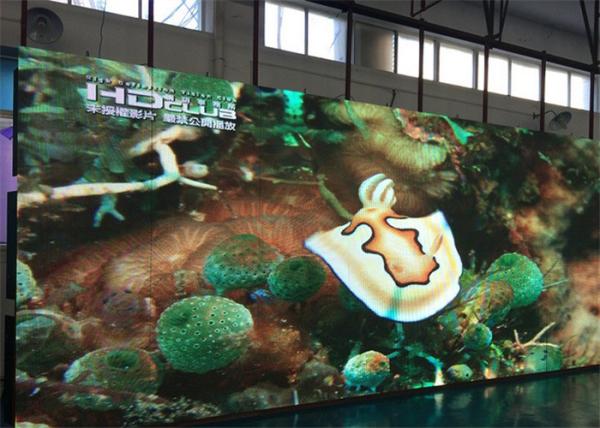

Super Slim Outdoor LED Video Wall P16mm Die - Casting Aluminum Image Promotion

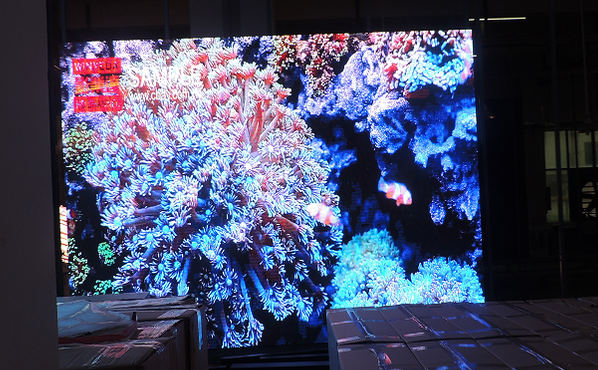

Super Slim Outdoor LED Video Wall P16mm Die - Casting Aluminum Image Promotion
